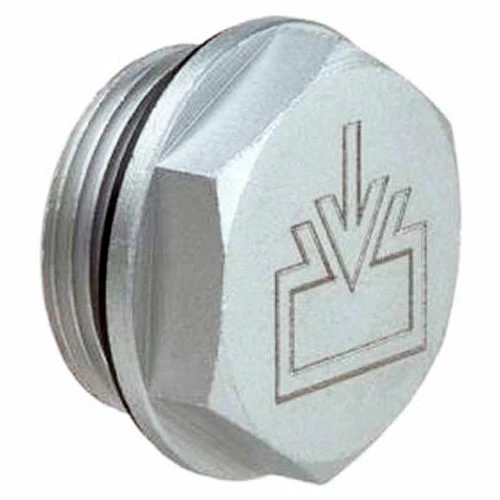

J.W. Winco 742-40-G1-ES-2 Aluminum Threaded Plug w/Fill Symbol w/2mm Vent Hole G 1" Pipe Thread
Original price was: $29.95.$20.97Current price is: $20.97.
- Shop with Ease
- 7 Days of Hassle-Free Returns
- Safe Payments, Happy Customers
- Top-Notch Quality

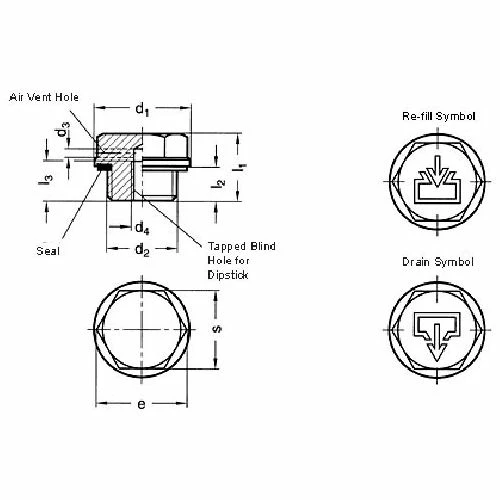

GN 742 fill/drain plugs are fitted with outside diameter d1 to fit screw holes with BSP threads included in DIN 3852. The seal is retained in a groove undercut in the mating face, which prevents it from dropping out and from extruding when the plug is tightened. For this reason the seal can be of a softer material which offers better sealing. Maximum heat resistance: 180°C (356°F).
| Thread Size | G 1 in |
|---|---|
| Across Flats | 32mm |
| Vent Hole | .08" |
| Height | .77 in |
| Diameter | 1.57 in |
| Width Across Corners | 1.46" |
| Body Material | Aluminum, Turned |
| Series | GN742 |
| Dipstick Thread | M5 x .8 |
| Seal Material | Viton Rubber |
| Country of Origin | Import |
| Manufacturers Part Number | 742-40-G1-ES-2 |
| Brand | J.W. Winco |
