GN 742 fill/drain plugs are fitted with outside diameter d1 to fit screw holes with BSP threads included in DIN 3852. The seal is retained in a groove undercut in the mating face, which prevents it from dropping out and from extruding when the plug is tightened. For this reason the seal can be of a softer material which offers better sealing. Maximum heat resistance: 180°C (356°F).
J.W. Winco 742-32-M26X1.5-OS-2 Aluminum Threaded Plug with 2mm Vent Hole with M26 x 1.5 Thread
$17.50 Original price was: $17.50.$12.25Current price is: $12.25.
SKU: J.W. Winco WBB2238728 Category: Fill Tags: 742-32-M26X1.5-OS-2, Aluminum, Turned, Fasteners & Hardware, GN742, Import, J.W. Winco, M5 x .8, Viton Rubber
- Shop with Ease
- 7 Days of Hassle-Free Returns
- Safe Payments, Happy Customers
- Top-Notch Quality

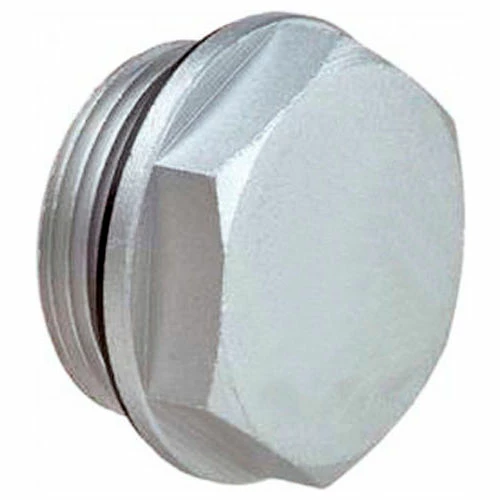

J.W. Winco 742-32-M26X1.5-OS-2 Aluminum Threaded Plug with 2mm Vent Hole with M26 x 1.5 Thread
| Thread Size | M26 x 1.5 in |
|---|---|
| Across Flats | 27mm |
| Vent Hole | 2mm |
| Height | 17 mm |
| Diameter | 32 mm |
| Width Across Corners | 31.2mm |
| Body Material | Aluminum, Turned |
| Series | GN742 |
| Dipstick Thread | M5 x .8 |
| Seal Material | Viton Rubber |
| Country of Origin | Import |
| Manufacturers Part Number | 742-32-M26X1.5-OS-2 |
| Brand | J.W. Winco |
