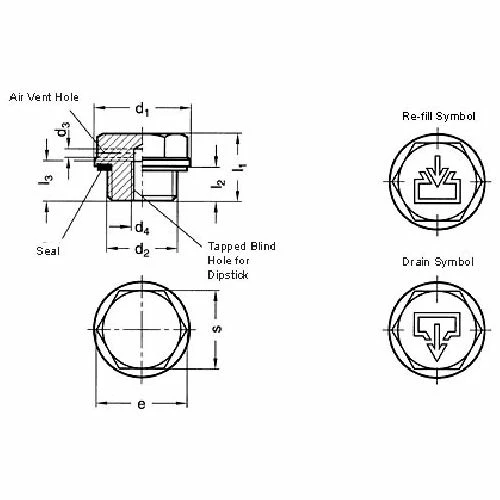

GN 742 fill/drain plugs are fitted with outside diameter d1 to fit screw holes with BSP threads included in DIN 3852. The seal is retained in a groove undercut in the mating face, which prevents it from dropping out and from extruding when the plug is tightened. For this reason the seal can be of a softer material which offers better sealing. Maximum heat resistance: 180°C (356°F).
J.W. Winco 742-22-M16X1.5-AS-2 Aluminum Plug with Drain Symbol with 2mm Vent Hole – M16 x 1.5 Thread
$14.50 Original price was: $14.50.$10.15Current price is: $10.15.
SKU: J.W. Winco WBB2238726 Category: Fill Tags: 742-22-M16X1.5-AS-2, Aluminum, Turned, Fasteners & Hardware, GN742, Import, J.W. Winco, M5 x .8, Viton Rubber
- Shop with Ease
- 7 Days of Hassle-Free Returns
- Safe Payments, Happy Customers
- Top-Notch Quality

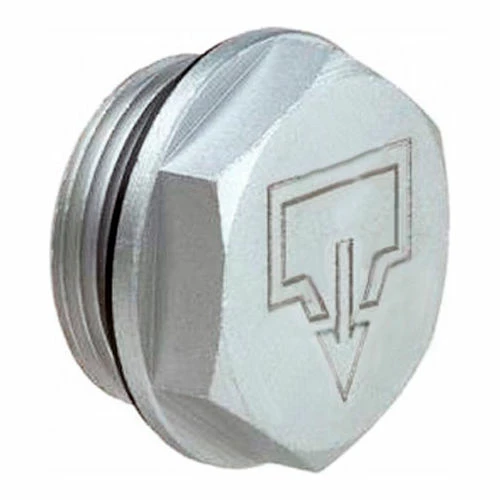

J.W. Winco 742-22-M16X1.5-AS-2 Aluminum Plug with Drain Symbol with 2mm Vent Hole – M16 x 1.5 Thread
| Thread Size | M16 x 1.5 in |
|---|---|
| Across Flats | 18mm |
| Vent Hole | 2mm |
| Height | 15.5 mm |
| Diameter | 22 mm |
| Width Across Corners | 20.8mm |
| Body Material | Aluminum, Turned |
| Series | GN742 |
| Dipstick Thread | M5 x .8 |
| Seal Material | Viton Rubber |
| Country of Origin | Import |
| Manufacturers Part Number | 742-22-M16X1.5-AS-2 |
| Brand | J.W. Winco |
