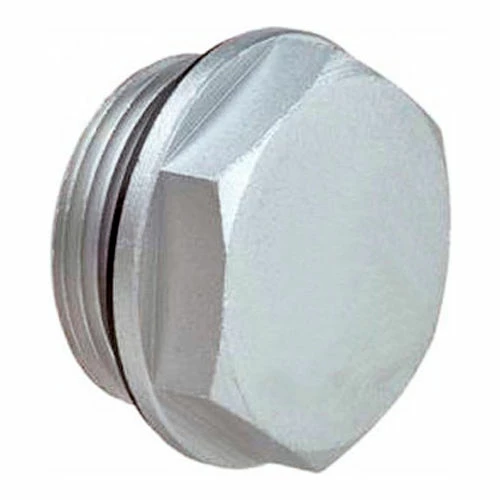

J.W. Winco 741-32-G3/4-OS-1 Aluminum Threaded Plug with G 3/4" Pipe Thread

J.W. Winco 741-32-G3/4-OS-1 Aluminum Threaded Plug with G 3/4" Pipe Thread - Image 2

J.W. Winco 741-32-G3/4-OS-1 Aluminum Threaded Plug with G 3/4" Pipe Thread - Image 3

J.W. Winco 741-32-G3/4-OS-1 Aluminum Threaded Plug with G 3/4" Pipe Thread

Original price was: $14.00.Current price is: $9.80.

SKU: J.W. Winco WBB2238737 Category: Fill Tags: 741-32-G3/4-OS-1, Aluminum, Turned, Fasteners & Hardware, GN741, Import, J.W. Winco, M5 x 0.8, NBR Synthetic Rubber

Shop with Ease
7 Days of Hassle-Free Returns
Safe Payments, Happy Customers
Top-Notch Quality

J.W. Winco 741-32-G3/4-OS-1 Aluminum Threaded Plug with G 3/4″ Pipe Thread

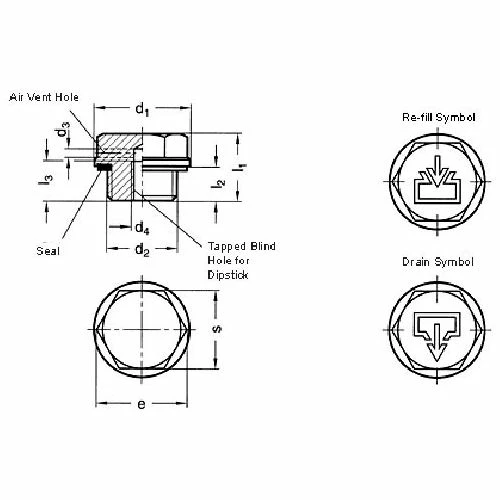

The seal is retained in a groove undercut in the mating face, which prevents it from dropping out and from extruding when the plug is tightened. For this reason the seal can be of a softer material which offers better sealing. NBR seal: maximum heat resistance: 120°C (250°F).

Thread Size	G 3/4 in
Across Flats	27mm
Height	.67 in
Diameter	1.26 in
Width Across Corners	1.23"
Dipstick Thread	M5 x 0.8
Country of Origin	Import
Seal Material	NBR Synthetic Rubber
Body Material	Aluminum, Turned
Series	GN741
Manufacturers Part Number	741-32-G3/4-OS-1
Brand	J.W. Winco
