GN 738.1 magnetic threaded plugs attract iron particles which might be suspended in the liquid. The magnetic pin is of a length which makes it impossible to demagnetize itself. To avoid breakage or de-magnetizing, round rod magnets are fitted with a plastic protection tube. This tube has to be removed prior to installing the plug. The seal is retained in a groove undercut in the mating face, which prevents it from dropping out and from extruding when the plug is tightened. For this reason the seal can be of a softer material which offers better sealing. Maximum heat resistance: 200°C
J.W. Winco 738.1-40-G1 Aluminum Magnetic Threaded Plug w/ Viton Seal – G 1" Pipe Thread
$35.95 Original price was: $35.95.$25.17Current price is: $25.17.
SKU: J.W. Winco WBB2238802 Category: Magnetic Tags: 738.1-40-1, Aluminum, Turned, Fasteners & Hardware, GN738.1, Import, J.W. Winco, Viton Rubber
- Shop with Ease
- 7 Days of Hassle-Free Returns
- Safe Payments, Happy Customers
- Top-Notch Quality

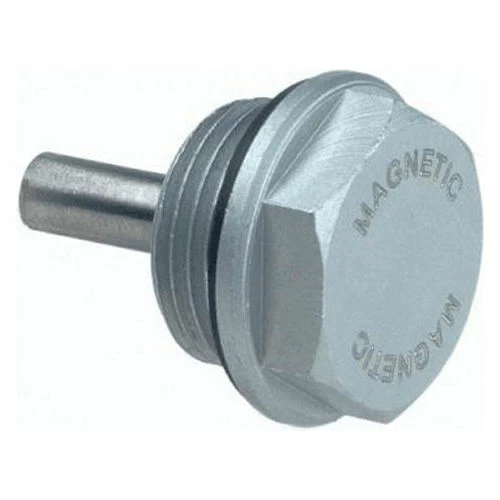

J.W. Winco 738.1-40-G1 Aluminum Magnetic Threaded Plug w/ Viton Seal – G 1″ Pipe Thread

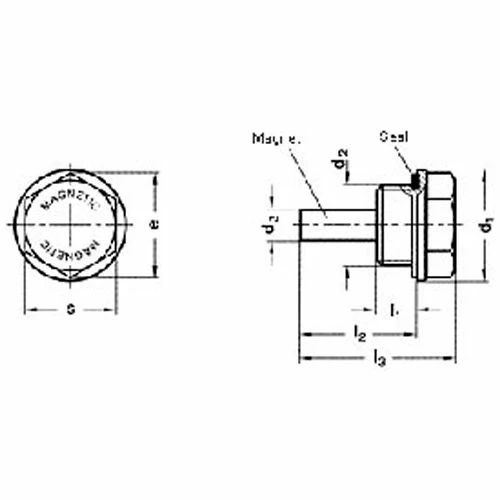

| Pin Length | .59 in |
|---|---|
| Pin Diameter | .24" |
| Thread Size | G 1 in |
| Across Flats | 1.26" (32mm) |
| Thread Length | .43 in |
| Foot Diameter | 1.02" |
| Diameter | 1.57 in |
| Width Across Corners | 1.46" |
| Length | 1.66 in |
| Body Material | Aluminum, Turned |
| Series | GN738.1 |
| Country of Origin | Import |
| Seal Material | Viton Rubber |
| Manufacturers Part Number | 738.1-40-1 |
| Brand | J.W. Winco |
Be the first to review “J.W. Winco 738.1-40-G1 Aluminum Magnetic Threaded Plug w/ Viton Seal – G 1" Pipe Thread” Cancel reply
