GN 738.1 magnetic threaded plugs attract iron particles which might be suspended in the liquid. The magnetic pin is of a length which makes it impossible to demagnetize itself. To avoid breakage or de-magnetizing, round rod magnets are fitted with a plastic protection tube. This tube has to be removed prior to installing the plug. The seal is retained in a groove undercut in the mating face, which prevents it from dropping out and from extruding when the plug is tightened. For this reason the seal can be of a softer material which offers better sealing. Maximum heat resistance: 200°C

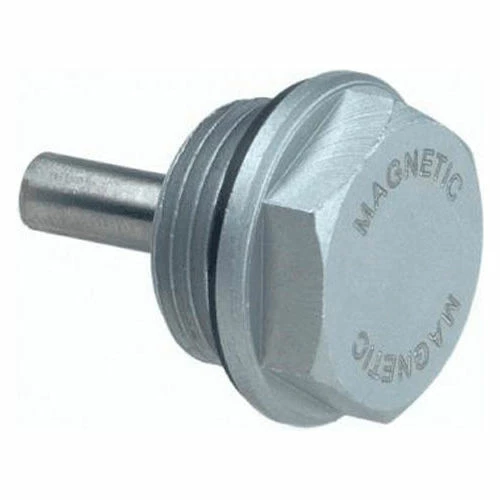

J.W. Winco 738.1-26-M20X1.5 Aluminum Magnetic Threaded Plug w/ Viton Seal – M20 x 1.5 Thread
$26.95 Original price was: $26.95.$18.87Current price is: $18.87.
SKU: J.W. Winco WBB2238720 Category: Magnetic Tags: 738.1-26-M20X1.5, Aluminum, Turned, Fasteners & Hardware, GN738.1, Import, J.W. Winco, Viton Rubber
- Shop with Ease
- 7 Days of Hassle-Free Returns
- Safe Payments, Happy Customers
- Top-Notch Quality

J.W. Winco 738.1-26-M20X1.5 Aluminum Magnetic Threaded Plug w/ Viton Seal – M20 x 1.5 Thread

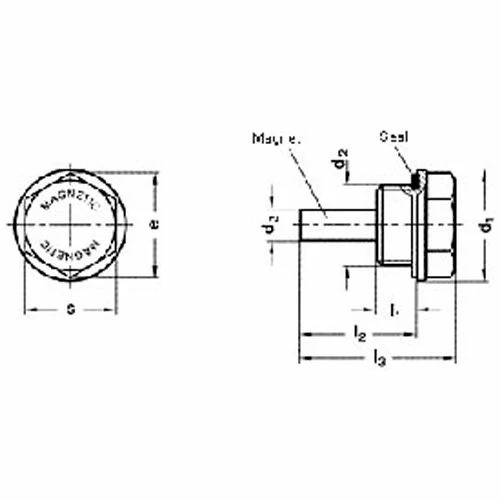

| Pin Length | 15mm in |
|---|---|
| Pin Diameter | 6mm |
| Thread Size | M20 x 1.5 in |
| Across Flats | 21mm |
| Thread Length | 8.5mm in |
| Diameter | 26 mm |
| Foot Diameter | 23.5mm |
| Width Across Corners | 24.3mm |
| Length | 31 mm |
| Body Material | Aluminum, Turned |
| Series | GN738.1 |
| Country of Origin | Import |
| Seal Material | Viton Rubber |
| Manufacturers Part Number | 738.1-26-M20X1.5 |
| Brand | J.W. Winco |
