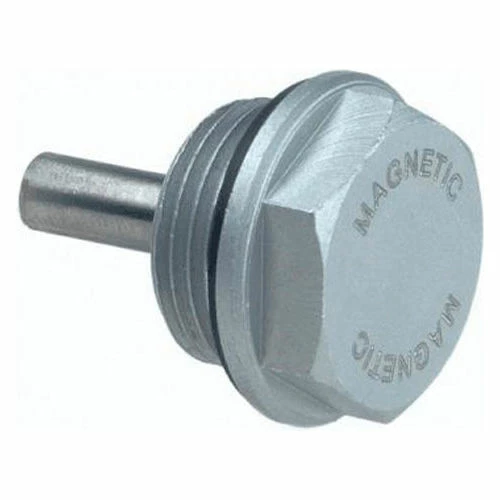

J.W. Winco 738.1-22-G3/8 Aluminum Magnetic Threaded Plug w/ Viton Seal – G 3/8" Pipe Thread
Original price was: $25.95.$18.17Current price is: $18.17.
- Shop with Ease
- 7 Days of Hassle-Free Returns
- Safe Payments, Happy Customers
- Top-Notch Quality
GN 738.1 magnetic threaded plugs attract iron particles which might be suspended in the liquid. The magnetic pin is of a length which makes it impossible to demagnetize itself. To avoid breakage or de-magnetizing, round rod magnets are fitted with a plastic protection tube. This tube has to be removed prior to installing the plug. The seal is retained in a groove undercut in the mating face, which prevents it from dropping out and from extruding when the plug is tightened. For this reason the seal can be of a softer material which offers better sealing. Maximum heat resistance: 200°C

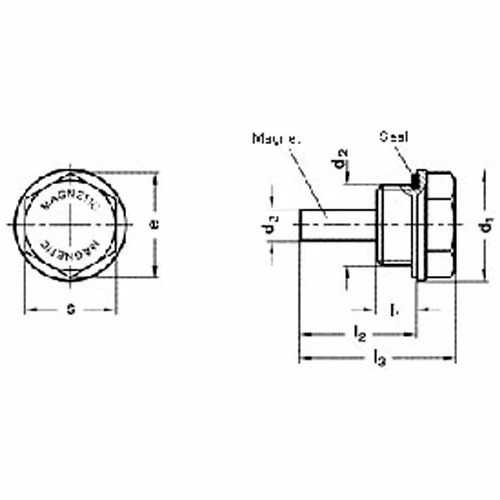

| Pin Length | .60 in |
|---|---|
| Pin Diameter | .24" |
| Thread Size | G 3/8 in |
| Across Flats | .71" (18mm) |
| Thread Length | .31 in |
| Diameter | .87 in |
| Foot Diameter | .91" |
| Width Across Corners | .82" |
| Length | 1.20 in |
| Body Material | Aluminum, Turned |
| Series | GN738.1 |
| Country of Origin | Import |
| Seal Material | Viton Rubber |
| Manufacturers Part Number | 738.1-22-G3/8 |
| Brand | J.W. Winco |
